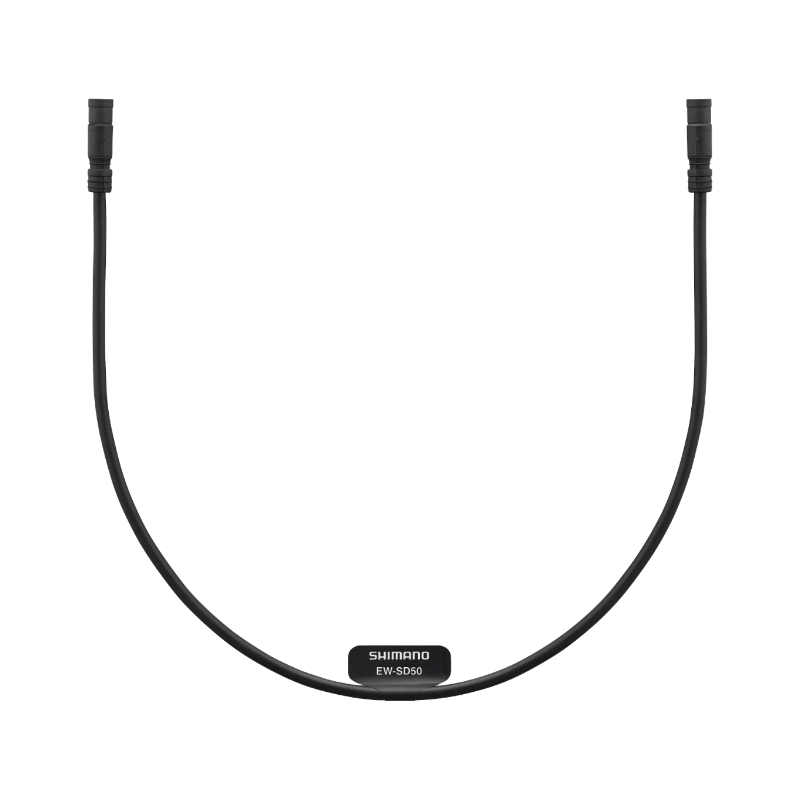

Shimano EW-SD50 950mm DI2 E-TUBE Electric Wire laidas

Shimano EW-SD50 950mm DI2 E-TUBE Electric Wire laidas

Available in lengths from 150 to 1600mm, the SD50 E-TUBE wire transmits interactive signals and provides power to E-TUBE DI2 drivetrains. With a compact, waterproof connector, it can be easily routed internally in handlebars and frames thanks to its "plug & gap" connection.

FEATURES

• Transmits interactive signals and power supply to each electronic components by “plug & gap” connection
• Compact and waterproof connector
• Easy to insert into frame
• Cable length 150 mm - 1600 mm
• With cable tie type for built-in cable routing (EW-SD50-I)

PRODUCT SPECIFICATIONS

MODEL NO: EW-SD50
SERIES: SHIMANO STEPS E7000 Series
Cable length: 150 - 1,600 mm*
* 1,600 mm is for E-BIKE usage only
Type: For external routing
Compatible system: E-TUBE system
Cord diameter: Φ2.8
Plug diameter: Φ5.1
SD300 connector (pcs): 0
SD300 port (pcs): 0
SD50 connector (pcs): 2
SD50 port (pcs): 0
