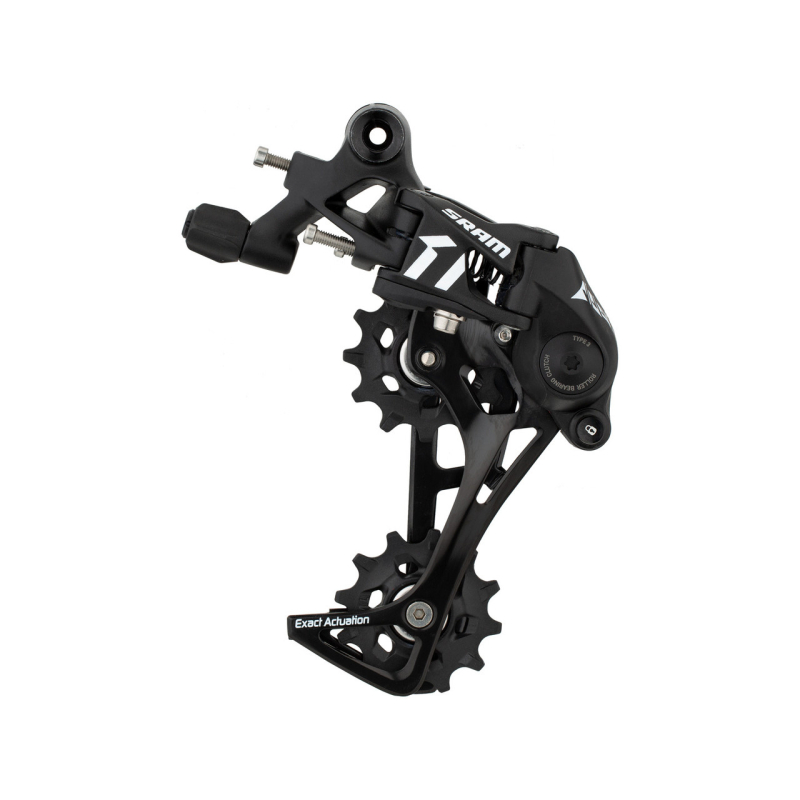

The SRAM Apex 1 drive offers an optimal gear ratio and enables easy shifting - so you can simply start riding. With the Apex 1 rear derailleur, this gear range becomes a reality and it ensures smooth, clean shifting thanks to SRAM's X-Horizon™ geometry and the Roller Bearing Clutch™.
Let's go: With Apex 1 you will reach your goal.
Technical specifications:
- Series:
- Apex
- Switching steps:
- 11
- Material outer cage:
- Aluminum
- Material inner cage:
- Steel
- Jockey wheels/bearing:
- Pulley/bearing with sealed bearing shells
- Cage sizes:
- Long
- Capacity (max):
- 42 teeth
- Technologies:
- Cage Lock™, Exact Actuation™, Roller Bearing Clutch™, X-Horizon™, X-Sync™
Features:
- Long cage for 11-42 cassette
- Thanks to CageLock™ technology, removing and installing the rear wheel is easier than ever
- compatible with SRAM 1x10 and 1x11 drivetrains
- Equipped with Roller Bearing Clutch™
- X-Horizon™ design reduces shifting effort and eliminates "ghost shifting" and slapping chains
- the chain spacing is automatically regulated by the large offset of the upper jockey wheel
- with sealed cartridge bearings
-
Technologies:
Cage Lock™:
Thanks to the Cage Lock™ technology in the rear derailleur, removing and installing the rear wheel and installing the chain are faster and easier than ever. Simply slide the cage forward (to release chain tension) and lock.
Exact Actuation&:
When first introducing its road bike technologies, SRAM once again used the tried-and-tested SRAM MTB 1:1 transmission ratio (spring deflection gear cable : rear derailleur movement). Exact Actuation™ helps create an easier and more stable balance between rear derailleur hanger design, tight cog spacing and accurate cable tension. The result: a switching system that is very easy to operate.
Roller Bearing Clutch™:
Roller Bearing Clutch™ rear derailleurs offer maximum drive stability - even on murderous and highly demanding terrain. The Roller-Bearing-Clutch™ technology puts an end to wobbly rear derailleurs and beating chains - without sacrificing precision.
X-Horizon™:
The parallelogram design of the X-Horizon™ derailleur limits movement along the horizontal axis, eliminating ghost shifting while reducing shifting effort. For faster and more precise shifting, the large offset of the upper jockey wheel ensures constant chain spacing in every gear.
X Sync™:
X-Sync™ 1x chainrings from SRAM ensure maximum performance and durability. Long SRAM X-Sync™ tooth edges engage the chain earlier than traditional triangular teeth. The sharp and narrow tooth profile as well as the rounded sloping edges support the chain guidance. In order to offer the best possible performance even in muddy terrain, the X-Sync™ chainrings have recesses for the inner chain links and rollers to evacuate dirt and mud. Made in Germany, X-Sync™ chainrings are an important part of SRAM's 1x drivetrain.
Manufacturer number:
00.7518.094.000
Scope of delivery:
- 1 x SRAM Apex rear derailleur
